All Room Information at a Glance

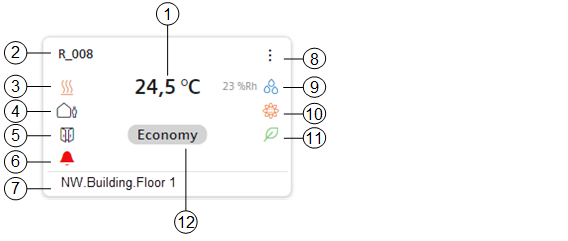

Room information

1

Displays the present room temperature.

2

Displays the room description. The display is based on the settings selected in Text representation.

3

Indicates energy demand neutral (empty), heating or cooling.

4

Indicates whether the state is occupied or not occupied.

5

Displays window state open or closed (no icon display when closed).

6

Displays alarm state Offnormal (overview state is not equal to normal).

7

Displays the address. The display is based on the settings selected in Text representation.

8

Go from selected object to graphical room view.

9

Displays relative humidity in %.

10

Indicates air quality good, OK, or poor.

11

Indicates energy efficiency good or poor.

12

Displays the room operating mode.
