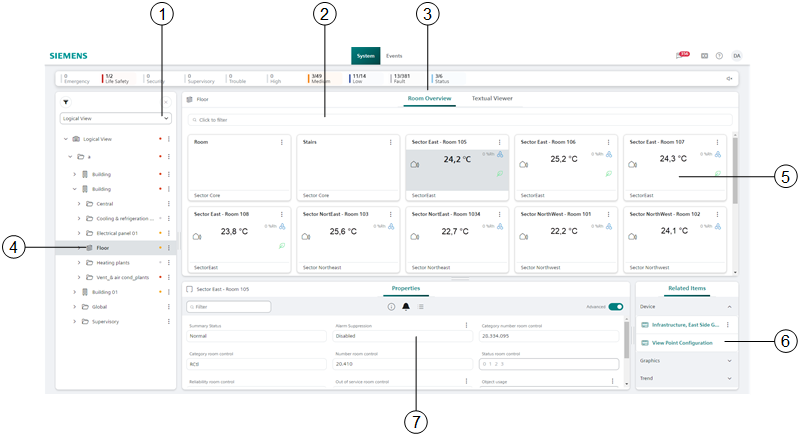

Room Overview for Building/Floor

Room overview building

1

Open the room overview in the logical or user view.

2

Predefined filters can refine the room overview.

3

Select the Room Overview tab. All rooms are displayed in a room overview.

4

Select the floor to open in room overview. The room overview is only displayed with subtype Campus, Building, or Floor. The subtype is set during engineering.

5

Displays detailed information on the room state in a tile.

6

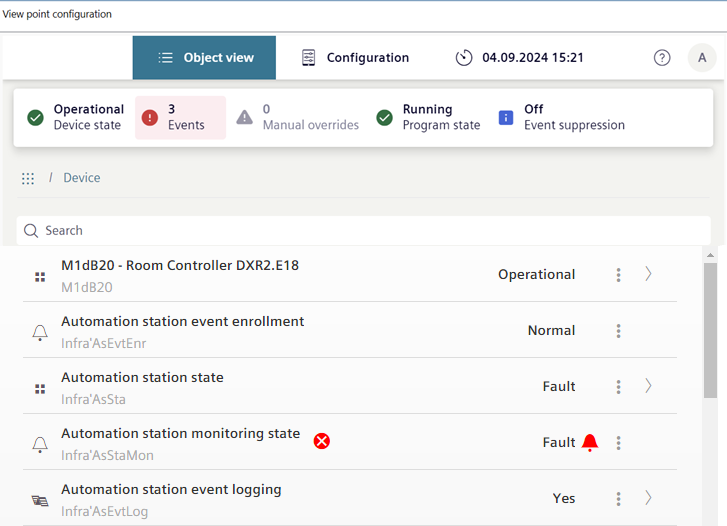

Depending on the Desigo Automation hardware, the link opens the Web interface.

7

Displays the properties for the specific room. The properties can be edited with the appropriate user rights.
