APOGEE Zones

When you select an APOGEE Zone in System Browser, the available zone schedules display in the Schedule tab.

How APOGEE Zones are Mapped

An APOGEE zone can contain multiple schedules that are:

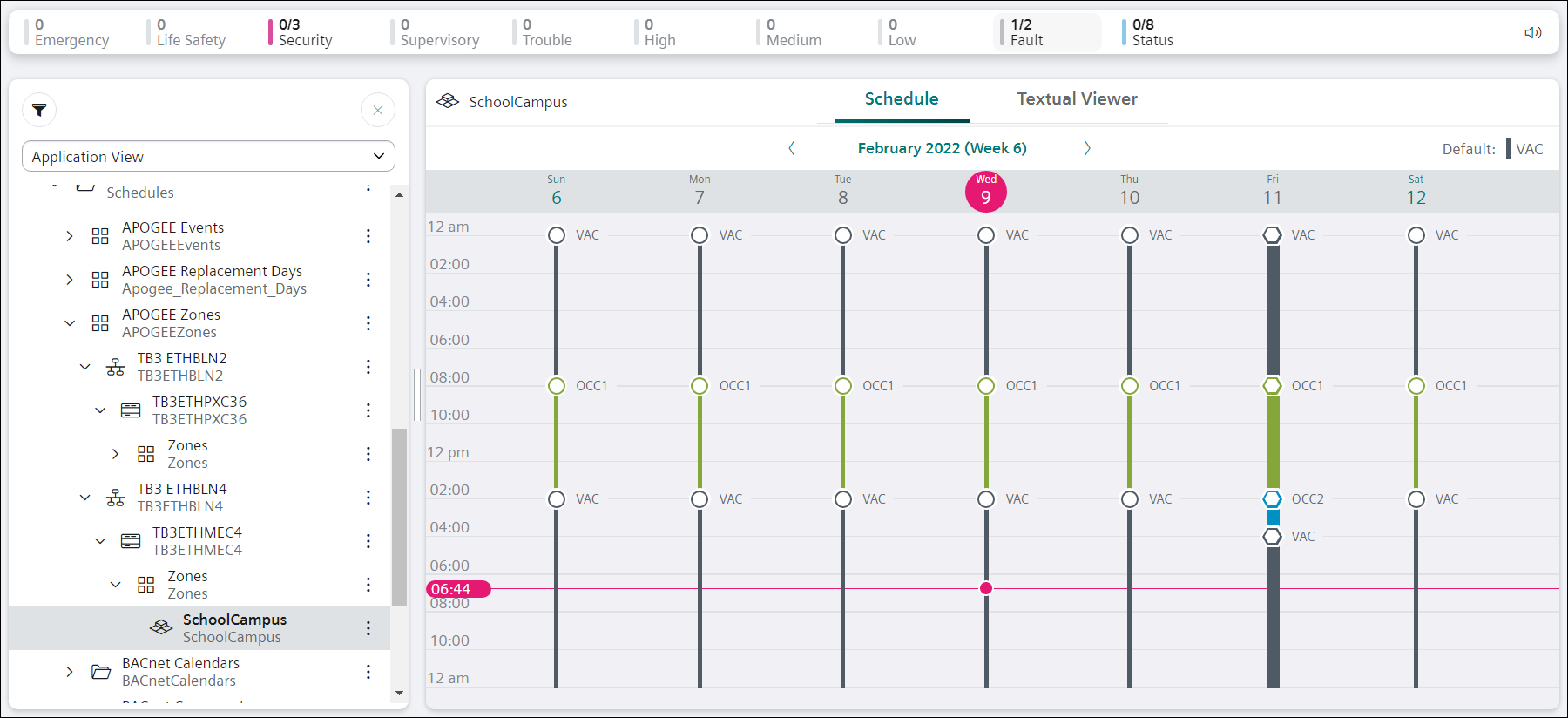

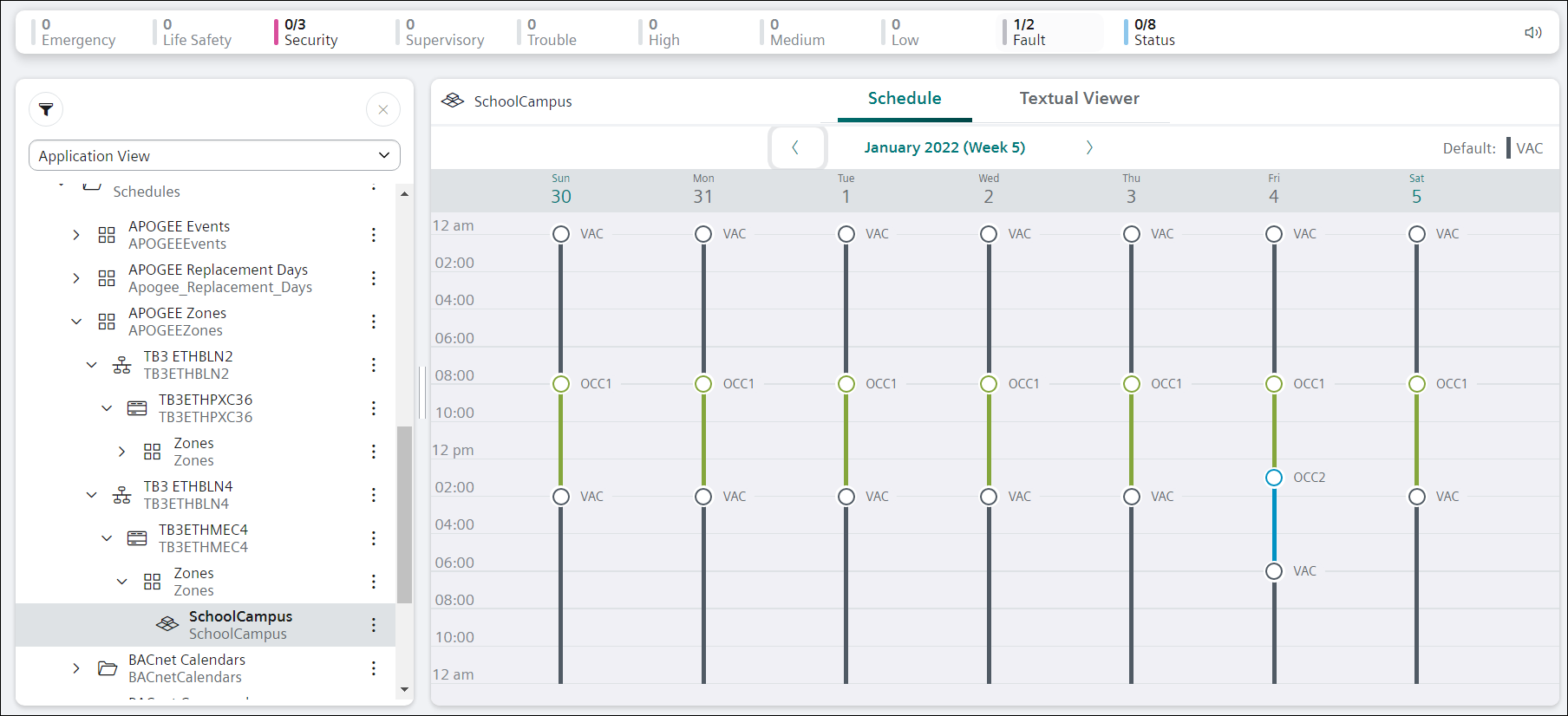

• Mapped to a weekly, continuous schedule:



• Or, Schedule Exceptions, which include overrides, short term, and one time scheduling.

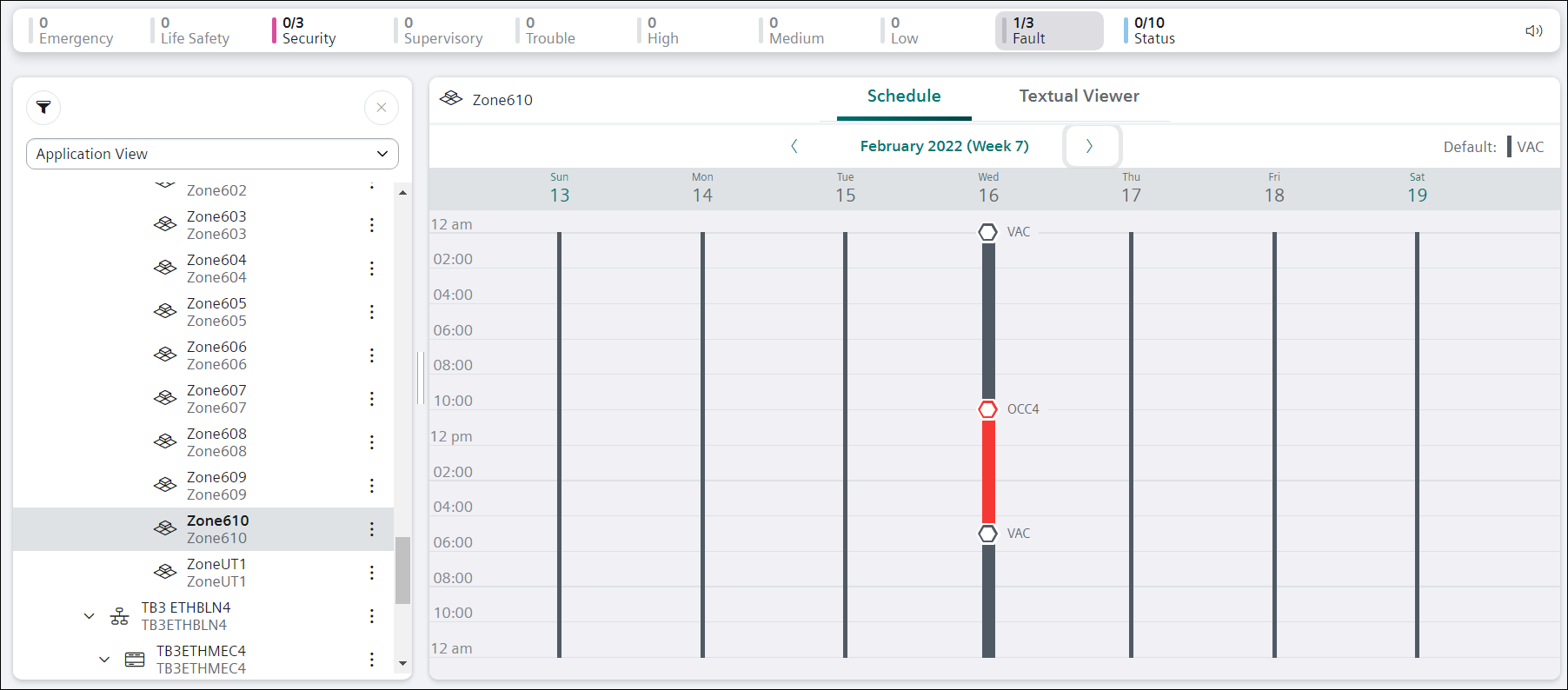

• Override Schedules – OCC4 is an override:

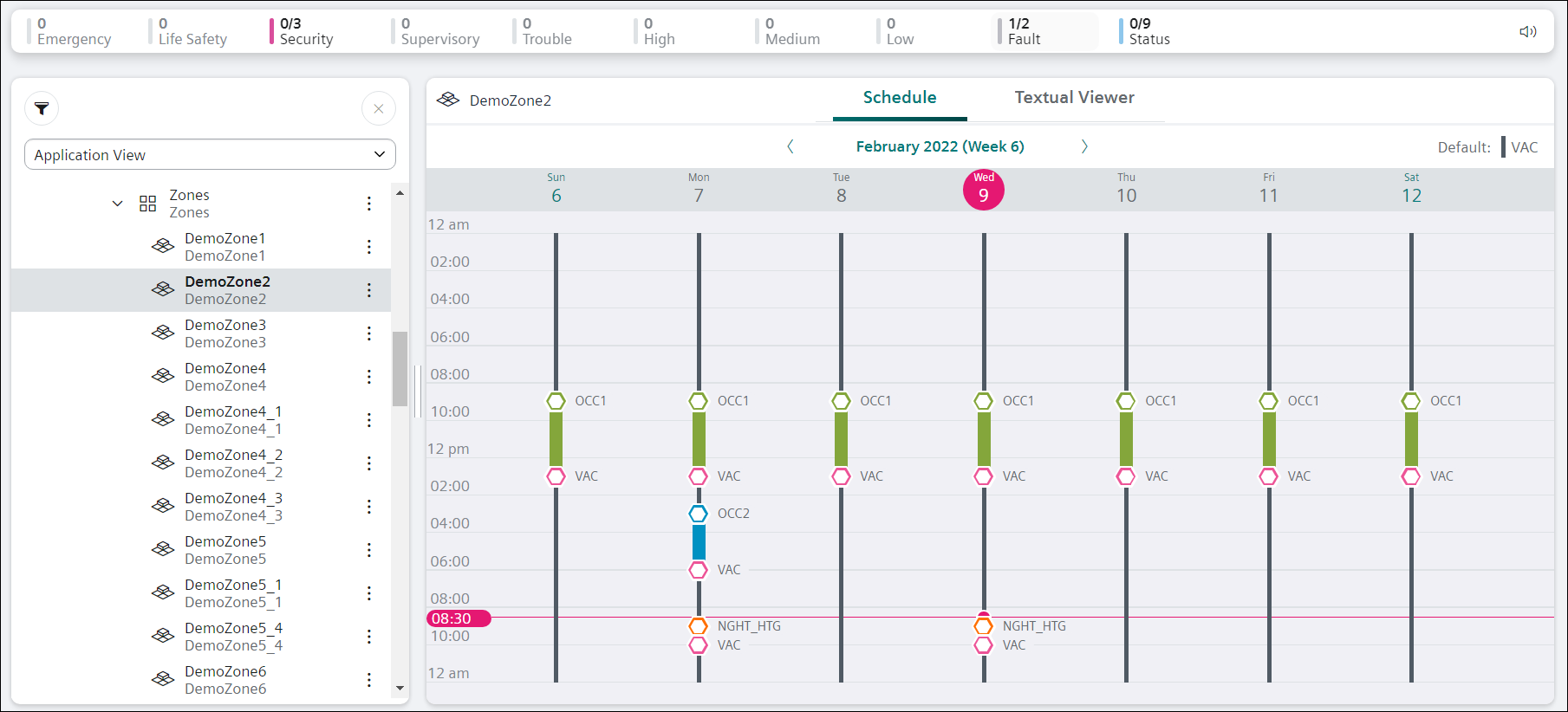

• Short-Term Schedules - OCC1, OCC2, and Night_Htg are all short term schedules:

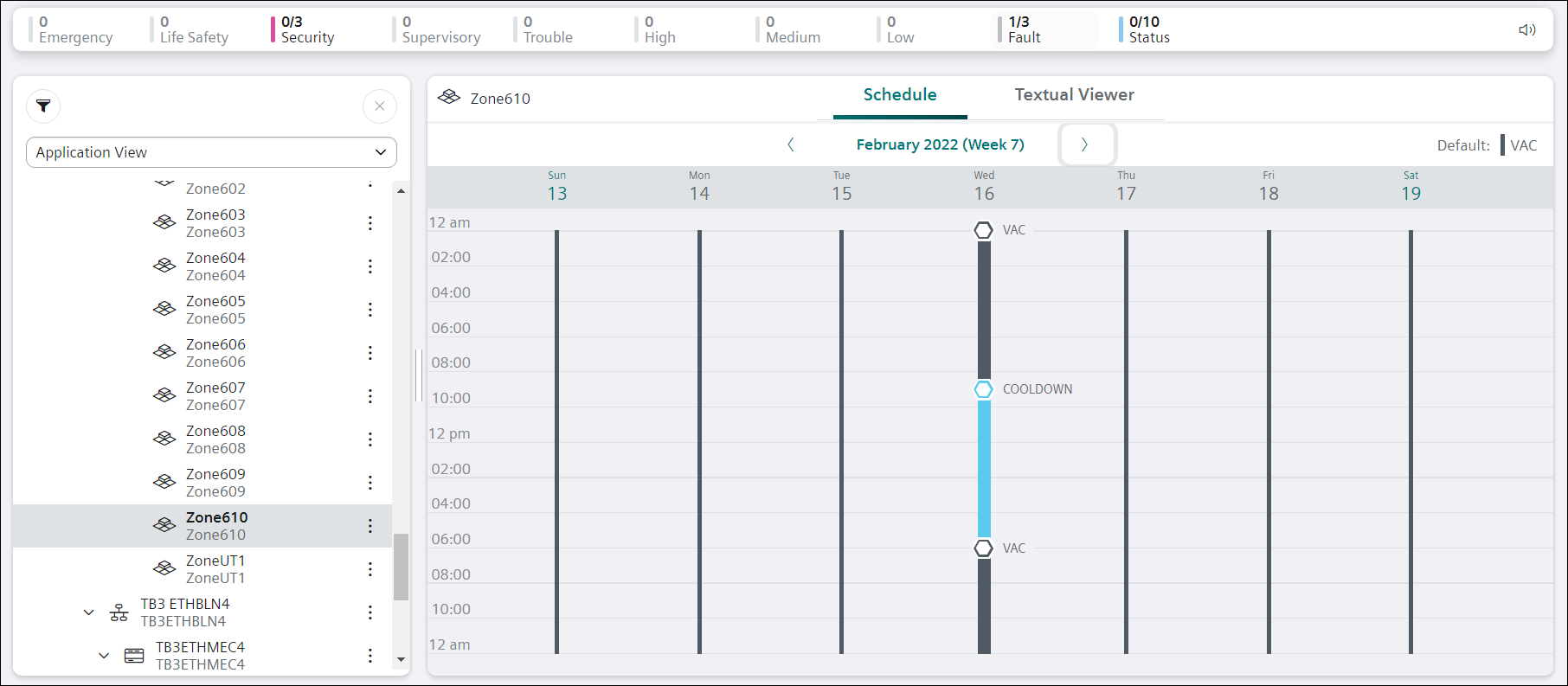

• One Time Schedules - COOLDOWN is a one-time scheduled event:
