Redirect USB Devices

This final procedure describes how to redirect physical USB devices from the host computer to the virtual machine. This is a crucial step for using specific hardware, within the virtualized environment.

Configuration on the Host Machine

  1. On the host machine, install the usbipd-win software by running the usbipd-win_x.x.x_x64.msi file.
  2. Open a Command Prompt with Administrator privileges.

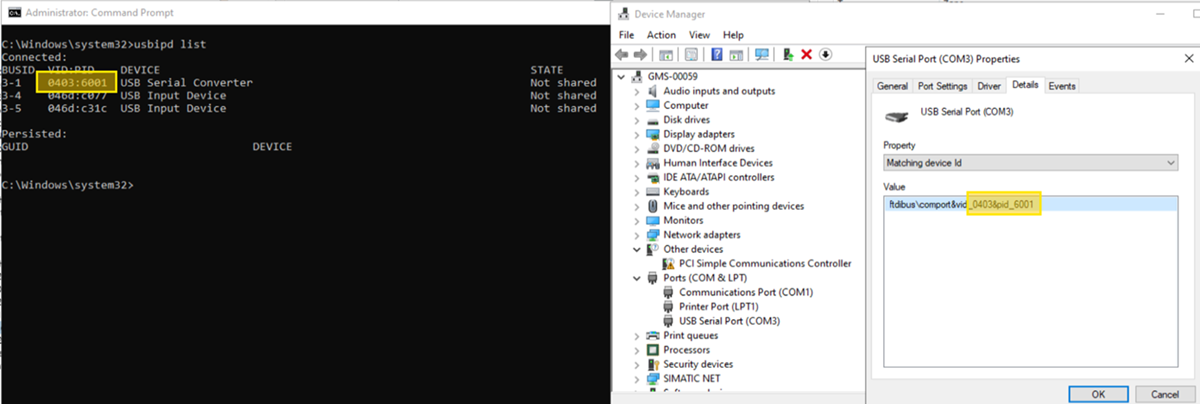

  3. To list all locally connected USB devices, type the command usbipd list and press Enter.
  4. Take note of the BUSID for each device you want to redirect (e.g., 3-1, 4-2).
  5. For each device to be redirected, share it (bind it) over the network using its BUSID. Type the command usbipd bind --busid=<BUSID>, replacing <BUSID> with the value you noted, and press Enter. Example: usbipd bind --busid=3-1.
  6. Repeat the previous step for all necessary devices.



Configuration on the Virtual Machine (VM)

  1. On the virtual machine, install the USBip client by running the USBip-x.x.x.x-x64-release.exe file.
  2. After the installation is complete, launch the usbip application.

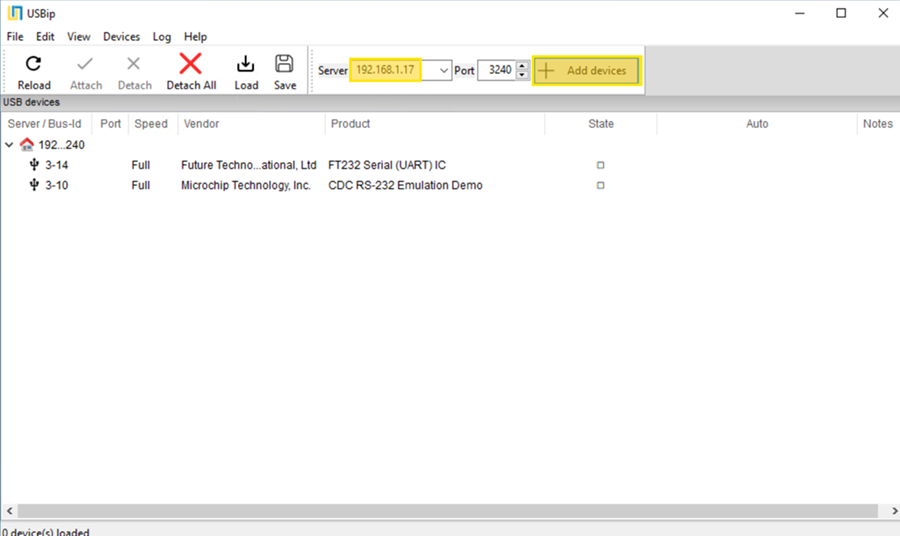

  3. In the main window, enter the IP address of the host machine.
  4. Select the Fetch remote hosts's list button (or similar) to retrieve the list of shared devices.
    NOTE: The list will show the devices made available in Phase 1, such as the SNC Card and the Comark Card.
  5. From the list of remote devices, perform the following actions for each device you want to connect:

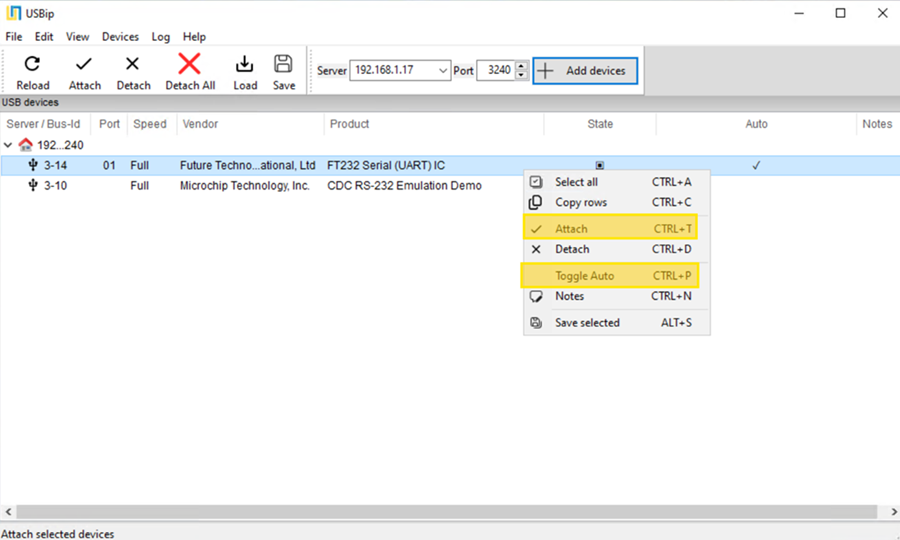

    - Right-click on the device and select Attach to connect it to the VM.
    - To ensure the device reconnects automatically after a reboot, right-click the same device again and select Toggle Auto-attach. An icon or checkmark will indicate that the feature is active.
